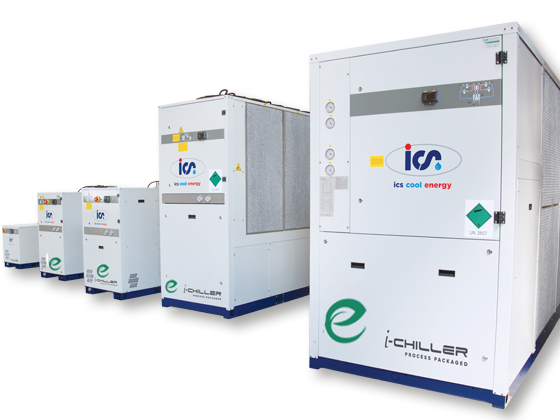

i-Chiller Proses E

R454b
R513a
-10°C to +30°C
7kW - 254kW
LOW GWP
LOW ODP

i-Chiller Process-e, proses soğutma gruplarımızın güvenilirliğini ve dayanıklılığını çevre dostu soğutucu akışkanlar R513A ve R454B’nin uygulanmasıyla birleştiren sürdürülebilirliğe olan bağlılığımızın bir sonucudur.

Bu chiller tamamen paketlenmiş bir konfigürasyona sahiptir ve standart olarak dahili bir depolama tankı ve pompaya sahiptir ve dünya çapında beğeni toplayan bir tak ve çalıştır çözümü sunar.

5 year warranty

For complete assurance of quality

Longer life reliability

Unique shell & tube evaporator

Plug & Play

Fully packaged & compact footprint

Fast customisation

Components & expertise in depots

Easy maintenance

Well known with parts stocked in vans

Eco friendly refrigerant

Long term sustainable cooling

For the most demanding applications

Designed to work whatever the conditions, our i-Chiller Process-e standard safety equipment includes a phase monitor, pressure switches, antifreeze sensors, level sensors, crankcase heaters and an internal hydraulic bypass circuit.

Select a hotspot to view features

The fully packaged process i-chiller

With a carbon steel shell and copper tubes, the evaporator has a single water circuit and a double refrigerant circuit to achieve maximum efficiency, also during the partial load functioning.

  • Refrigerant fluid R513A (GWP=573) on models IC020e to IC071e
  • Refrigerant fluid R454A (GWP=466) on models IC081e to IC1002e
  • Internal hydraulic bypass
  • Electronic level sensor with water conductivity function
  • High pressure switch (models IC031e - IC1002e), high pressure transducer, low pressure switch
  • Refrigerant pressure gauges (models IC031e-IC1002e)

    • Özellikler

    Özellikler

    VersioniC220AiC303AiC305AiC407AiC408GiC410GiC412GiC416GiC520GiC525GiC530GiC535GiC538GiC540GiC640GiC650GiC660GiC770GiC780GiC790GiC7100G
    Nominal cooling capacitykW4,967,17 10,3616,6021,8525,9833,0535,9543,3747,6657,0364,1975,0985,0887,1399,26112,32130,58148,27171,91190,26
    Total absorbed powerkW1,812,473,645,498,379,5612,3914,1116,9319,5521,5226,2826,3931,7434,5037,9443,1050,1053,4363,4274,92
    EER2,752,902,853,022,612,722,672,55 2,562,442,652,442,852,682,532,622,612,612,772,712,54
    Max external air temperature°C464646464646464646464646464646464646464646
    Power supplyV/Ph/Hz400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50400 ± 10% / 3-PE / 50
    Circuits / CompressorsN°1/11/11/11/11/11/11/11/11/21/21/21/21/21/21/21/21/21/21/21/21/2
    Sound powerdB(A)80,481,181,181,681,682,182,18384,384,3868688,389,789,589,589,590,290,691,792,8
    Sound pressuredB(A)52,453,153,153,653,654,154,155,056,356,358,058,060,361,761,561,561,562,262,678,779,8
    RefrigerantR513AR513AR513AR513AR454BR454BR454BR454BR454BR454BR454BR454BR454BR454BR454BR454BR454BR454BR454BR454BR454B
    Widthmm560660660761761761761761866866866866115011501255125512551250125012501250
    Depthmm128413151315186218621862186218622250225022502250279027903298329832983535353546554655
    Heightmm90414201420155615561556155615562172217221722172226022602299229922992152215221522152
    Working weightkg1993143244624626246356496499249661018136614191666168217262077211428392936
    Tank volumel60115115140140255255255350350350350410410500500500678678950950

    İndirilenler

    Download i-Chiller brochure

    pdf

    download
