Specifiche:

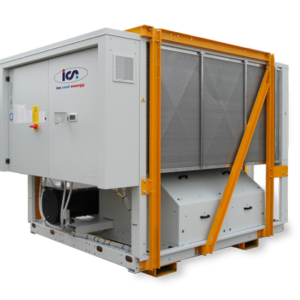

Chiller 300 | ||
---|---|---|
Size | 3,100 x 2,360 x 2,450(LxWxH) mm | |
Stacking Frame | 3,600 x 2,500 x 2,650(LxWxH) | |
Weight | 3,700Kg | |
Cooling Capacity | 303kW | |
Compressor | 2 Maneurope Screw (2 circuits) | |
Refrigerant | (Zero ozone deletion potential) HFCR134a | |
Fluid Flow | 39.1/105m3/hr min/max | |
Max Power Absorbed | 124.7kW | |
Electrical Supply Voltage Phase | 400/3/50V | |
Max Current Absorbed | 254A | |
Chiller Power Connections | 12 mm lugs | |
Sound Pressure Level | 55dB(A) |
