Specifiche:

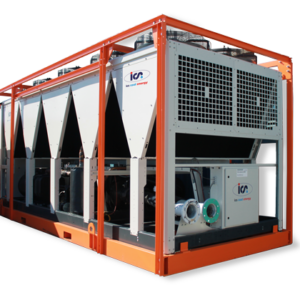

Chiller 760 | ||
---|---|---|
Size | 5,810 x 2,310 x 2,400(LxWxH) mm | |
Stacking Frame | 6310 x 2,610 x 2,700(LxWxH) | |
Weight | 7,500Kg | |
Cooling Capacity | 760kW | |
Compressor | 2 Bitzer Screw (2 circuits) 6 step capacity | |
Refrigerant | (Zero ozone deletion potential) HFCR134a | |
Fluid Flow | 50/137m3/hr min/max | |
Max Power Absorbed | 266kW | |
Electrical Supply Voltage Phase | 400V | |
Max Current Absorbed | 500A | |
Chiller Power Connections | 12mm lugs | |
Sound Pressure Level | 61dB(A) |
