Boiler 600 1PH
Request Quote
Boiler 600 1PH
Boiler 600 1PH
Our compact single phase 600 kW boiler system is powerful in design, and offers low temperature hot water for demanding requirements.

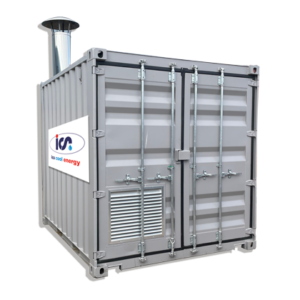

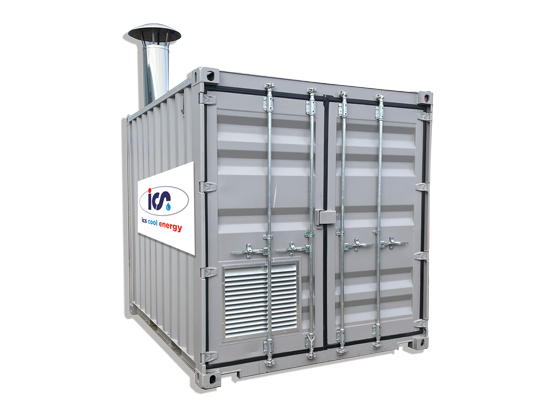

It is housed in a steel container which provides increased security and protection from the weather. The container also aids with portability as the unit can easily be positioned with a fork-lift truck or crane and connected to your system ensuring a fast rental set-up.
Rapid and secure connections are made using flexible high temp hoses fitted with PN16 flanges. This unit comes with a built in pressurization unit with quick and easy connections for systems that regularly lose pressure.
Specifications
Compare products by selecting an alternative
Boiler 600 1PH |
Compare this product to... |
||
|---|---|---|---|
| Heating Capacity | Heating Capacity | 600 kW | |
| Max fluid outlet temperature | Max fluid outlet temperature | 90 °C | |
| Safety Valve Rating | Safety Valve Rating | 5.5 Bar | |
| Maximum Running Current | Maximum Running Current | 13 A | |
| Electrical Connection | Electrical Connection | 32A 3-Pin CEE Plug | |
| Supply Voltage | Supply Voltage | 230 V | |
| Supply Phases | Supply Phases | 1 Ph | |
| Supply Frequency | Supply Frequency | 50 Hz | |
| Fluid Connection | Fluid Connection | DN100 PN16 Flange | |
| Expansion Vessel (Primary) | Expansion Vessel (Primary) | 500 Litre | |
| Width | Width | 2400 mm | |
| Height | Height | 2600 mm | |
| Length | Length | 3700 mm | |
| Weight | Weight | 4500 Kg |
