DAC 500 V2

Request Quote

DAC 500 V2

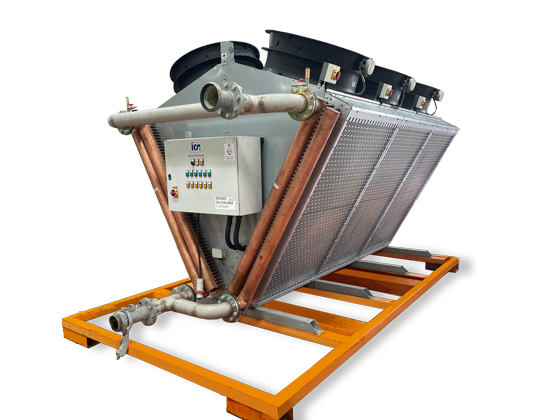

500 kW Dry Air Cooler Hire

Highest efficiency ratings

Our Dry Air Cooler DAC 500 V2 is designed to withstand the demands of the hire industry and provide a rapidly installed cooling solution. This unit can be supplied with a variety of fluid connections, subject to pressure and temperature constraints.

It comes with a 32Amp 3-phase plug connector and has automatic control for the variable speed fans to give efficient temperature regulation.

Compact

Low noise

Energy saving

Specifications

Compare products by selecting an alternative

	DAC 500 V2	Compare this product to...
Cooling Fluid On Temperature	Cooling Fluid On Temperature	40 °C
Cooling Fluid Off Temperature	Cooling Fluid Off Temperature	35 °C
Ambient Air On Temperature	Ambient Air On Temperature	25 °C
Cooling Capacity	Cooling Capacity	500 kW
Maximum Fluid On Temperature	Maximum Fluid On Temperature	100 °C
Max Current	Max Current	24 A
Max Power Absorbed	Max Power Absorbed	15.6 kW
Electrical Connections	Electrical Connections	32 A 5-Pin A
Supply Voltage	Supply Voltage	400 V
Supply Phases	Supply Phases	3 PH
Supply Frequency	Supply Frequency	50 Hz
Fluid Connections	Fluid Connections	4'' Flange
Sound Pressure	Sound Pressure	64 db(A) @10m
Length	Length	3900 mm
Width	Width	2350 mm
Height	Height	2700 mm
Weight Empty	Weight Empty	1694 kg

Specifications

DAC 500 V2
Cooling Fluid On Temperature
40 °C
Cooling Fluid Off Temperature
35 °C
Ambient Air On Temperature
25 °C
Cooling Capacity
500 kW
Maximum Fluid On Temperature
100 °C
Max Current
24 A
Max Power Absorbed
15.6 kW
Electrical Connections
32 A 5-Pin A
Supply Voltage
400 V
Supply Phases
3 PH
Supply Frequency
50 Hz
Fluid Connections
4'' Flange
Sound Pressure
64 db(A) @10m
Length
3900 mm
Width
2350 mm
Height
2700 mm
Weight Empty
1694 kg
