ENERGY ENHANCEMENTS
Improve your existing temperature control equipment to reduce energy costs and carbon emissions, extend plant life and mitigate breakdown risk with our eMission Critical solutions. We can conduct no-obligation energy analysis audits and consultation to illustrate the best opportunities to improve energy efficiency whether through free cooling, heat recovery or efficiency improvements such as adiabatic enhancements or variable speed drives.
We provide data to show how efficiently your equipment is operating and recommend ways it can be improved with expected payback periods.
WHY CHOOSE ENHANCEMENTS?
Improve energy efficiency
Reduce maintenance as well as energy bills
Extend equipment life
Mitigate breakdown risk
Improve plant operation.
Improve Corporate Social Responsibility profile
Improve safety
Legislation compliance
TYPES OF ENHANCEMENTS
We can offer a number of solutions to enhance your existing temperature control equipment, with data to back up our recommendations.

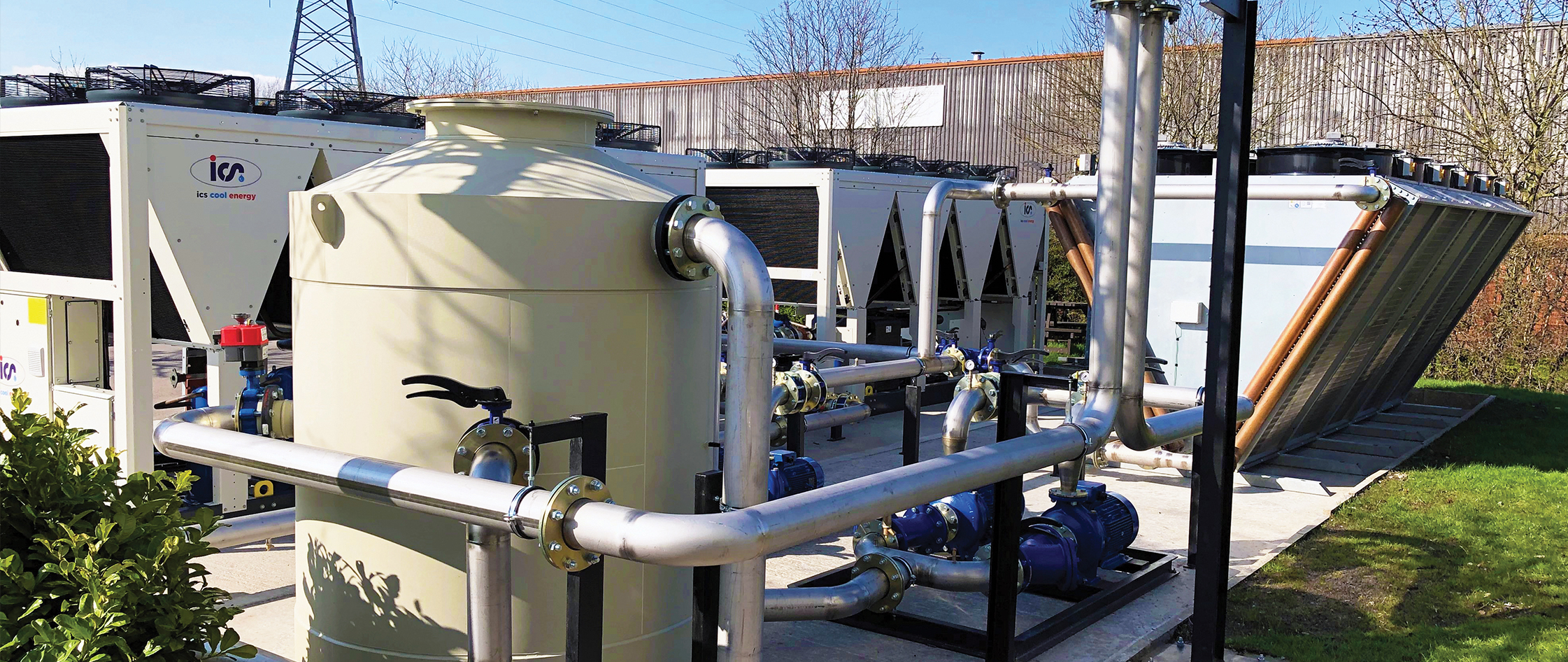

FREE COOLING
Free Cooling projects can save up to 80% of temperature control energy costs. In much of Western Europe, the relatively cool climate allows for partial or full free cooling for much of the year with substantial energy savings between October and April.
Any externally sited chiller can benefit from free cooling. This can be in the form of partial free cooling (where the chiller’s compressors are still doing some of the work to cool) to full free cooling (where the full load on the chiller is offset). In contrast, an externally sited chiller’s compressors with no free cooling capabilities will be working flat out to achieve the same.
BENEFITS
Reduces mechanical consumption
Improves carbon footprint
Reduces load on mechanical parts
Reduces maintenance costs
Extends life of equipment
Smaller load demands can lessen the depreciation value of the chiller over its lifetime
Easy to retrofit (space permitting)
Payback on the new equipment can be quick
HEAT RECOVERY
Free heating can be achieved by recovering the “waste” heat from cooling processes. Where heating or hot water is required for process or domestic use on the same site as cooling requirements, then systems can be created or retrofitted to utilise heat rejected from cooling to reduce or even remove the need for fossil fuel heating. Heat pumps are classed as a renewable energy and can improve TER from 1.5 to 9 giving up to 600% potential efficiency gains. Why waste “waste heat”?
Recycling waste heat from your cooling systems will help to increase the efficiency of your plant. The waste heat that would have been rejected to the atmosphere, is recovered and reused for any number of process needs including heating or preheating water to use for either domestic hot water or process applications.
BENEFITS
Recover up to 70% of potentially wasted electrical heat energy
Produce hot water up to 70°C
Reduce energy consumption of your heating system(s)
No increase in footprint
ADIABATIC ENHANCEMENTS
Available for new and existing equipment, an adiabatic enhancement is a unique system that improves the performance, reliability, and energy efficiency of all air-cooled equipment, without requiring energy to provide its cooling effect. The adiabatic enhancement works by reducing the temperature of the ambient air by as much as 20°C. A reduction of 10°C alone can generate a 13% reduction in energy consumption – delivering immediate cost savings and environmental benefits.
BENEFITS
Reduction of system energy input
Delivery of additional capacity for your process needs
Delivery of design capacity without interruptions, even in higher ambient conditions
Extension of equipment operating range beyond its original specifications
Improved equipment lifecycle
Filters air
VARIABLE SPEED FREQUENCY DRIVES (VSD)
Controlling the flow of air and water in process temperature control systems is an effective, permanent way to meet the everchanging demands put on a system and enhance its efficiency.
ICS Cool Energy can install a Variable Speed Drive or VSD (an electrical/electronic system that provides infinitely variable speed control of AC induction motors). VSD’s can be installed to meet varying system flow rate requirements or just to increase energy efficiency. Payback on an installed system can be as little as 6 months.
BENEFITS
Energy savings
Cost savings
Trouble-free operation
Meet system demands more easily
