150 kW Air Handling Unit Hire

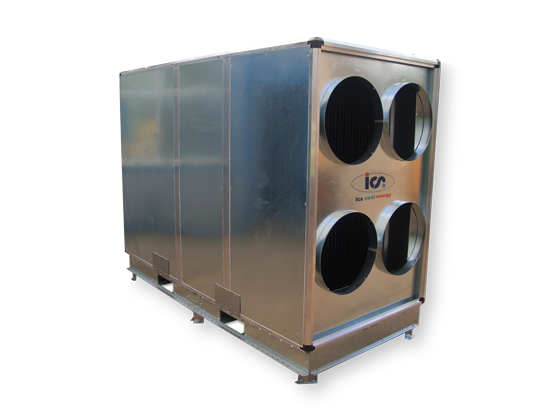

Our Air Handler 150 is a flexible single fan unit capable of offering 20,000 m³/hr airflow.
The unit requires a water source to the integral coil and has quick-release water connections, together with a 32amp 3-phase power connection.

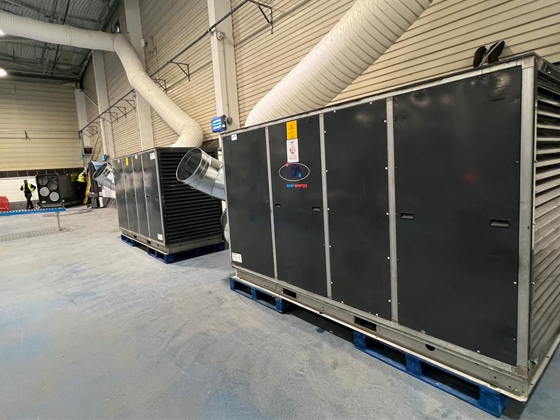

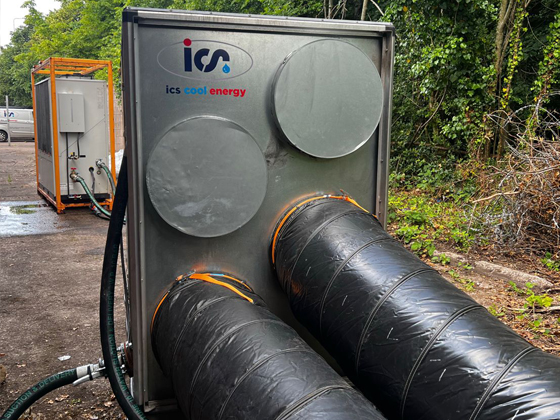

This 150kW air handler unit can be sited internally or externally and has 4x500mm spigots available for free blowing cool air or for connecting flexible ducting to provide cool air in additional areas up to 30 metres.
The unit is also supplied with a condensate pump, boxed G4 pleated filters (BS EN 779) and a variable (frequency driven) fan speed control.
Specifications
Compare products by selecting an alternative
150 Air Handler |
Compare this product to... |
||
|---|---|---|---|
| Cooling Capacity | Cooling Capacity | 150 kW | |
| Heating Capacity | Heating Capacity | 350 kW | |
| Airflow | Airflow | 20000 m³/hr | |
| Fan Max Current | Fan Max Current | 22 A | |
| Fan Electrical Connections | Fan Electrical Connections | 32A 5-Pin CEE Plug | |
| Supply Voltage | Supply Voltage | 400 V | |
| Supply Phases | Supply Phases | 3 pH | |
| Supply Frequency | Supply Frequency | 50 Hz | |
| Air Outlet Connection | Air Outlet Connection | Ducting Spigot | |
| Fluid Connections | Fluid Connections | DN50, PN16 Flange |
