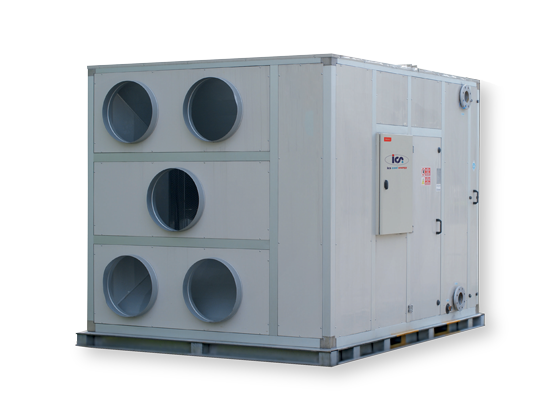

350 kW Air Handling Unit Hire
Our 350 unit is a flexible single-fan unit capable of offering 40,000 m3/hr airflow.
The unit requires a water source to the integral coil and has quick-release water connections, together with a 63 amp 3-phase power connection. This 350 kW air handler unit can be sited internally or externally and has 5x500mm (20”) spigots available for free blowing cool air or for connecting flexible ducting. The unit can be supplied with a condensate pump, boxed G4 pleated filters (BS EN 779), and a variable (frequency-driven) fan speed control.
Specifications
Compare products by selecting an alternative
350 Air Handler |
Compare this product to... |
||
---|---|---|---|
Cooling Capacity | Cooling Capacity | 350 kW | |
Heating Capacity | Heating Capacity | 750 kW | |
Airflow | Airflow | 40000 m³/hr | |
Fan Max Current | Fan Max Current | 44 A | |
Fan Electrical Connections | Fan Electrical Connections | 63A 5-Pin CEE Plug | |
Supply Voltage | Supply Voltage | 400 V | |
Supply Phases | Supply Phases | 2 pH | |
Supply Frequency | Supply Frequency | 50 Hz | |
Air Outlet Connection | Air Outlet Connection | Ducting Spigot | |
Fluid Connections | Fluid Connections | DN50, PN16 Flange |
