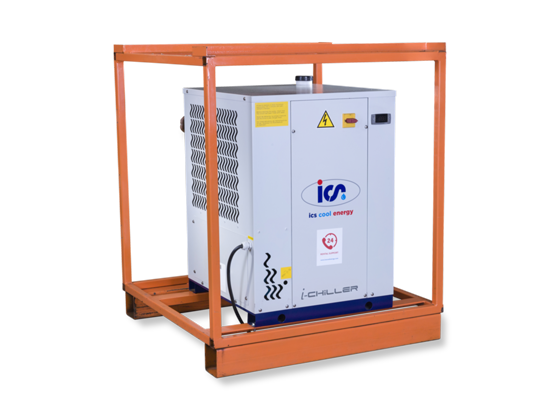

3 kW Process Chiller Hire
Our i-Chiller 3, which provides a reduced footprint, lower power usage and is part of a 10 model range capable of offering between 1kW and 50kW of cooling. The chillers all contain a circulation pump and thermal buffer tank capable of receiving variable load conditions and providing stable return temperatures.
This full packaged 3 kW chiller units can be supplied with ferrous or non-ferrous circuit, together with a wide range of connecting valves and hoses to help connect on to customers specific systems.
Specifications
Compare products by selecting an alternative
i-Chiller 3 |
Compare this product to... |
||
|---|---|---|---|
| Process Fluid Outlet Temperature | Process Fluid Outlet Temperature | 7 °C | |
| Process Fluid Inlet Temperature | Process Fluid Inlet Temperature | 12 °C | |
| Ambient Temperature | Ambient Temperature | 30 °C | |
| Cooling Capacity | Cooling Capacity | 3.03 kW | |
| Minimum Fluid Outlet Temperature | Minimum Fluid Outlet Temperature | -5 °C | |
| Maximum Fluid Inlet Temperature | Maximum Fluid Inlet Temperature | 35 °C | |
| Minimum Ambient Operating Temperature | Minimum Ambient Operating Temperature | 5 °C | |
| Maximum Ambient Operating Temperature | Maximum Ambient Operating Temperature | 45 °C | |
| Cooling Capacity -20°c Fluid Outlet +30°c Ambient | Cooling Capacity -20°c Fluid Outlet +30°c Ambient | kW | |
| P3 Pump Performance +7°c Outlet +30°c Ambient | P3 Pump Performance +7°c Outlet +30°c Ambient | 0.507 m³/hr | |
| Maximum Fluid Flow Rate - P3 Pump | Maximum Fluid Flow Rate - P3 Pump | 1.5 m³/hr | |
| Minimum Fluid Flow Rate - P3 Pump | Minimum Fluid Flow Rate - P3 Pump | 0.2 m³/hr | |
| Maximum Power Absorbed | Maximum Power Absorbed | 2.3 kW | |
| Electrical Power Connections | Electrical Power Connections | 16A 3 Pin CEE Plug | |
| Electrical Supply Voltage | Electrical Supply Voltage | 230 V | |
| Electrical Supply Phases | Electrical Supply Phases | 1 PH | |
| Electrical Supply Frequency | Electrical Supply Frequency | 50 | |
| Process Fluid Connections | Process Fluid Connections | 1/2'' Hose Tail | |
| Sound Pressure | Sound Pressure | 47 db(A) @10m | |
| Length Inc Frame | Length Inc Frame | 925 mm | |
| Width Inc Frame | Width Inc Frame | 898 mm | |
| Height Inc Frame | Height Inc Frame | 1600 mm | |
| Weight Inc Frame | Weight Inc Frame | 176 kg |
