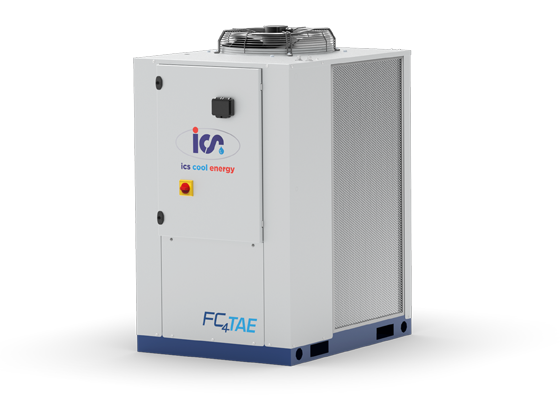

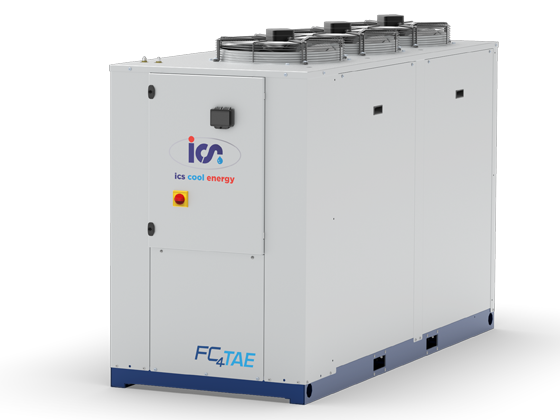

FC4TAE
The FC4TAE chiller is an industrial refrigeration air-cooled chiller for outdoor installation specifically designed for deep freezing applications with an air-cooled chiller.
This chiller provides unrivalled reliability and safety, utilising the latest state of the art freezing technologies. This technology delivers a market leading lowest charge of refrigerant (70 kgs), without sacrificing any freezing capacity or energy efficiency. It is ideal for deep freezing processes requiring heat transfer fluids between -12°C and -30°C.
5 year warranty
For complete assurance of quality
Environmentally responsible
Improve carbon footprint
Plug & play
Fully packaged & compact footprint
High energy cost savings
Payback in as little as 3 months
Easy to retrofit
Quickly improve your cooling system
Reduced mechanical load
Extend the life of your equipment
Independant or integral solution
Free cooling works with either a chiller with a built-in free cooling coil or a free cooler working in series with a chiller. The latter is more efficient, due to the larger surface area provided by the air cooler. Our Free Coolers can cool the full duty for much larger parts of the year in lower ambient temperatures, they yield much higher energy and cost savings and improved carbon footprint of chilled water systems.
Specifications
Specifications
| Version | FC4TAE 051 | FC4TAE 161 | FC4TAE 351 | FC4TAE 602 | FC4TAE 802 | FC4ALL 300 | FC4ALL 450 | |
| Cooling power | kW | 18,3 | 44,4 | 75,2 | 133 | 184,2 | 265,8 | 406,7 |
| Total free-cooling temperature | °C | 1,7 | -1 | -1,1 | -0,8 | -1,25 | 0,4 | 0,7 |
| Water pressure drop | bar | 0,2 | 0,56 | 0,49 | 0,5 | 0,29 | 0,52 | 0,67 |
| Height | mm | 1360 | 1360 | 1460 | 2190 | 2190 | 2190 | 2190 |
| Length | mm | 760 | 760 | 866 | 1410 | 1410 | 1410 | 2190 |
| Width | mm | 983 | 1517 | 2225 | 2926 | 2926 | 3660 | 3660 |
| Weight | kg | 160 | 220 | 355 | 695 | 890 | 1020 | 1325 |
Downloads
Download i-Chiller brochure
