Specifications:

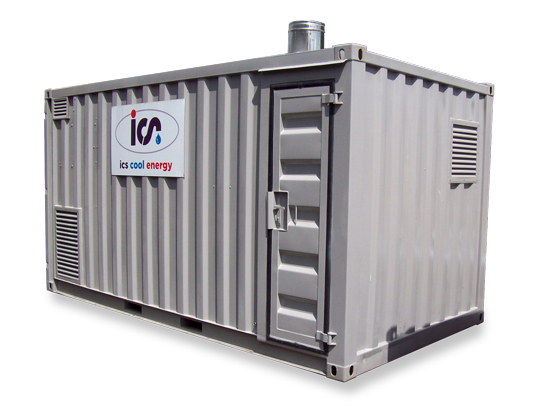

| Boiler 2000 | ||
|---|---|---|
| Size | 6058 x 2435 x 2890(LxWxH) mm | |
| Weight | 8500Kg | |
| Heating Power | 1950kW | |
| Heating Mode | 55 - 90°C | |
| Temperature (Supply/Return) | 90/70°C | |
| Water Connections | 6” Dn150 | |
| Boiler Fuel Consumption at full load | Diesel215Litres/hr | |
| Boiler Fuel Consumption at full load | Gas-m3/hr | |
| Part Load turn down | Diesel2 : 1 | |
| Part Load turn down | Gas- | |
| Safety Valve | 6 Bar | |
| Expansion Vessel | 1500Litre | |
| Power Supply | 400/3/50V / ph / Hz | |
| Electrical Supply | CEE 63 A |
