Chiller 900

Request Quote

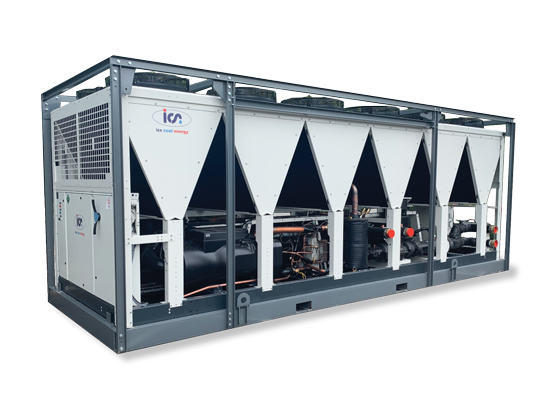

Chiller 900

900 kW Process Chiller Hire

Temperature range -12°C to +20°C

Our Chiller 900 has the latest energy saving screw compressors (2), offering a wide temperature range of -12°C to +20°C water leaving temperature and 30%-100% capacity control.

This 900 kW chiller offers the zero ozone depleting HFC refrigerant R134a and manufactured to the latest environmental ISO14001 controls.

Efficient cooling

Screw compressor technology

HFC refrigerant R134a

Specifications

Compare products by selecting an alternative

	Chiller 900	Compare this product to...
Process Fluid Outlet Temperature	Process Fluid Outlet Temperature	7 °C
Process Fluid Inlet Temperature	Process Fluid Inlet Temperature	12 °C
Ambient Temperature	Ambient Temperature	30 °C
Cooling Capacity	Cooling Capacity	903 kW
Minimum Fluid Outlet Temperature	Minimum Fluid Outlet Temperature	-12 °C
Maximum Fluid Inlet Temperature	Maximum Fluid Inlet Temperature	27 °C
Minimum ambient operating temperature	Minimum ambient operating temperature	-10 °C
Maximum Ambient Operating Temperature	Maximum Ambient Operating Temperature	46 °C
Cooling Capacity -20°C Fluid Outlet / +30°C ambient	Cooling Capacity -20°C Fluid Outlet / +30°C ambient	kW
P3 Pump Performance +7°C outlet / +30°C ambient.	P3 Pump Performance +7°C outlet / +30°C ambient.	m³/hr
Maximum Fluid Flow Rate - P3 Pump	Maximum Fluid Flow Rate - P3 Pump	m³/hr
Minimum Fluid Flow Rate - P3 Pump	Minimum Fluid Flow Rate - P3 Pump	m³/hr
Maximum Power Absorbed	Maximum Power Absorbed	319 kW
Electrical Power Connections	Electrical Power Connections	12mm lugs
Electrical Supply Voltage	Electrical Supply Voltage	400 V
Electrical Supply Phases	Electrical Supply Phases	3 PH
Electrical Supply Frequency	Electrical Supply Frequency	50
Process Fluid Connections	Process Fluid Connections	4" PN10 Flange
Sound Pressure	Sound Pressure	64 db(A) @10m
Length (inc. frame)	Length (inc. frame)	6880 mm
Width (inc. frame)	Width (inc. frame)	2480 mm
Height (inc. frame)	Height (inc. frame)	2660 mm
Weight (inc. frame)	Weight (inc. frame)	6607 kg

Specifications

Chiller 900
Process Fluid Outlet Temperature
7 °C
Process Fluid Inlet Temperature
12 °C
Ambient Temperature
30 °C
Cooling Capacity
903 kW
Minimum Fluid Outlet Temperature
-12 °C
Maximum Fluid Inlet Temperature
27 °C
Minimum ambient operating temperature
-10 °C
Maximum Ambient Operating Temperature
46 °C
Cooling Capacity -20°C Fluid Outlet / +30°C ambient
kW
P3 Pump Performance +7°C outlet / +30°C ambient.
m³/hr
Maximum Fluid Flow Rate - P3 Pump
m³/hr
Minimum Fluid Flow Rate - P3 Pump
m³/hr
Maximum Power Absorbed
319 kW
Electrical Power Connections
12mm lugs
Electrical Supply Voltage
400 V
Electrical Supply Phases
3 PH
Electrical Supply Frequency
50
Process Fluid Connections
4" PN10 Flange
Sound Pressure
64 db(A) @10m
Length (inc. frame)
6880 mm
Width (inc. frame)
2480 mm
Height (inc. frame)
2660 mm
Weight (inc. frame)
6607 kg
