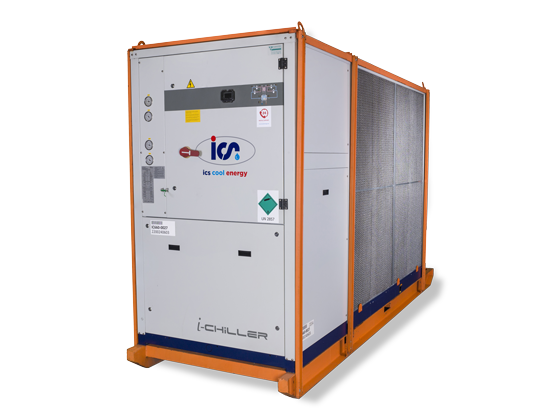

I-Chiller 160

Chiller Hire & Rental

Temperature Range: -10°C to 20°C

Specifications Downloads

Our Chiller 160 has an integral thermal buffer tank in order to give a controlled band of temperature control to your process or HVAC system.

This 160 kW chiller offers a wide temperature range of -10°C to 15°C water leaving temperature.

The unit is also supplied with an integral process pump, quick-release water and power connections for a fast start-up.

With low noise operation and a compact footprint, the Chiller 160 is fully packaged to simplify installation on-site with easy setup and control.

24/7 Service

Supporting you all day, every day

Fast Delivery

In stock for up to same day delivery

Technical Specialists

Process temperature control specialists for 40+ years

Specifications:

Select a product to compare this to:

		Chiller 160
Size		4,015 x 1,270 x 2,276(LxWxH) mm
Stacking Frame		4,500 x 1,330 x 2,251(LxWxH)
Weight		1585Kg
Cooling Capacity		160kW
Compressor		4 Maneurope Scroll (2 circuits)
Refrigerant		(Zero ozone deletion potential) HFCR410A
Fluid Flow		12.5/56m3/hr min/max
Max Power Absorbed		71 (64.3 Nominal)kW
Electrical Supply Voltage Phase		400V
Max Current Absorbed		119 (109 Nominal)A
Chiller Power Connections		125amp C Forme 5 pin Plug
Sound Pressure Level		62.2dB(A)

Downloads

i-Chiller 160 Spec Sheet
