Plant Room 600
Plant Room 600

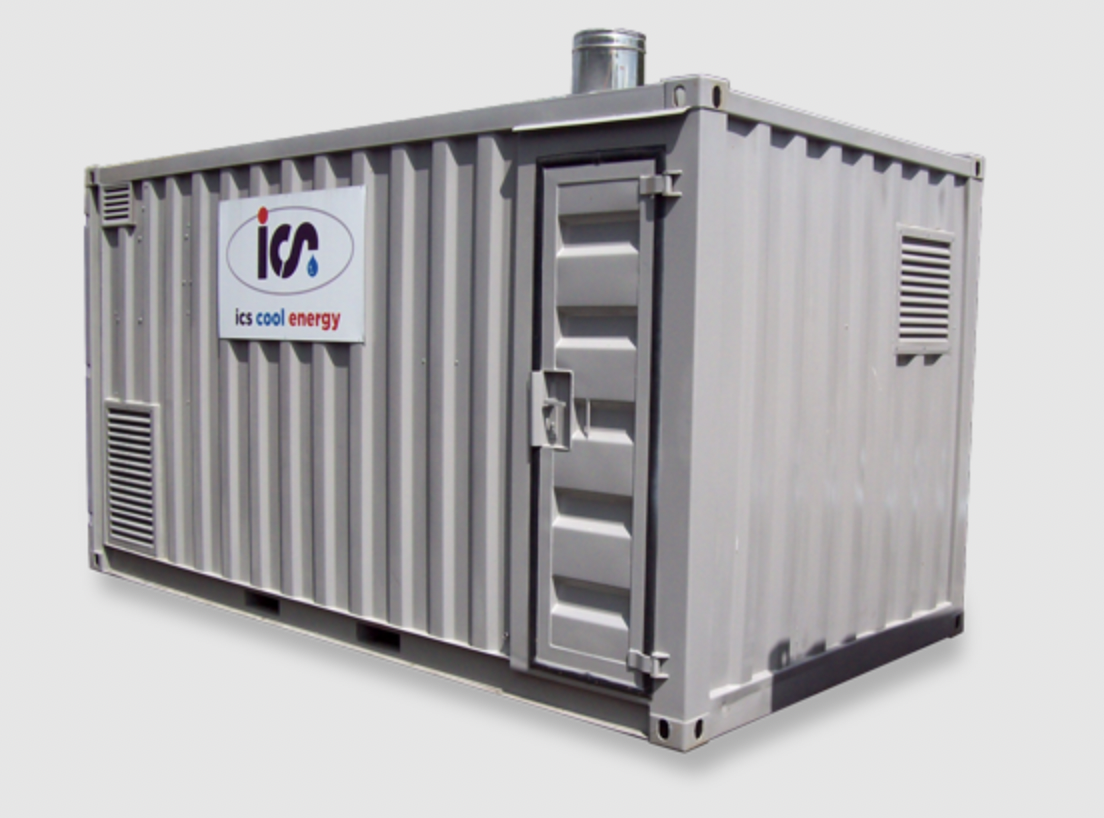

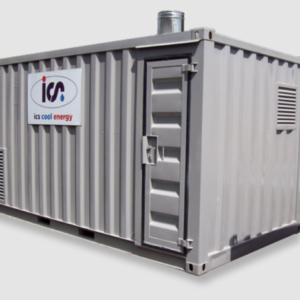

Our Boiler Plant Room 600 are designed for reliable and safe operation with flexible hoses resistant up to 7 Bar pressure and resistant to temperatures up to 90°C.
It’s steel container enables external siting and increased protection from environmental elements. The container also means it can be easily positioned with a fork-lift and connected to your system for a fast rental set-up.
Furthermore the units feature safety devices, system protection, diaphragm expansion tank, and frost protection.
This dual circuit boiler has quick and easy connections for both Heating and domestic Hot water purposes.
Specifications
Compare products by selecting an alternative
Plant Room 600 |
Compare this product to... |
||
|---|---|---|---|
| Heating Capacity | Heating Capacity | 560 kW | |
| Max fluid outlet temperature | Max fluid outlet temperature | 90 °C | |
| Safety Valve Rating | Safety Valve Rating | 4 Bar | |
| Maximum Running Current | Maximum Running Current | 13 A | |
| Electrical Connection | Electrical Connection | 16A 5-Pin CEE Plug | |
| Supply Voltage | Supply Voltage | 400 V | |
| Supply Phases | Supply Phases | 3 Ph | |
| Supply Frequency | Supply Frequency | 50 Hz | |
| Fluid Connection | Fluid Connection | 4" Camlock Heating/2" Camlock Hot Water | |
| Expansion Vessel (Primary) | Expansion Vessel (Primary) | 500 Litre | |
| Width | Width | 2440 mm | |
| Height | Height | 2590 mm | |
| Length | Length | 3410 mm | |
| Weight | Weight | 4300 Kg |
