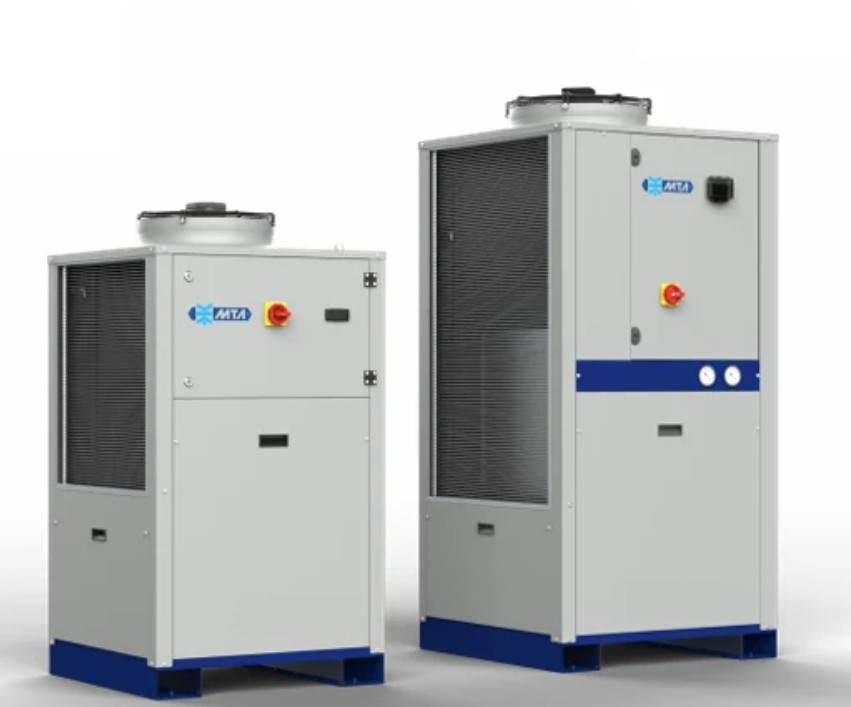

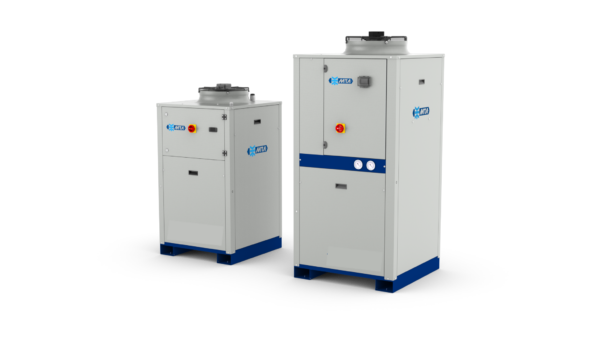

i-Chiller Compact e
Introducing the i-Chiller Compact-e: the sustainable compact air-cooled process chiller, designed for the toughest industrial applications. At ICS Cool Energy, we’re committed to leading the green transition in energy systems, and the i-Chiller Compact-e is a testament to that. By combining the reliability of our well-known process chillers with the environmentally friendly R513A refrigerant, we provide a sustainable alternative to R410A.
The i-Chiller Compact-e comes with an integrated accumulation tank and pump, offering a hassle-free plug & play solution that’s trusted around the globe. Its flexible design and wide operational limits mean it can handle a variety of process cooling needs.
Powerful, adaptable, and dependable – the i-Chiller Compact-e has everything your industry requires.
Environment-friendly cooling
With R513A refrigerant
Fit for process
Coil in tank evaporator for industrial use
Plug & play
Fully packaged & compact footprint
Modifications
Components & expertise in depots
Easy maintenance
Well known with parts stocked in vans
Low risk
Over 4 decades of installs
Sustainable cooling without compromise
Discover an unparalleled operating range, dependability, and efficiency.
Select a hotspot to view features
Specifications
Specifications
| Version | iC15Ce | iC20Ce | iC30Ce | iC40Ce | iC50Ce | iC55Ce | iC70Ce | |
| Nominal cooling capacity | kW | 4,2 | 5,1 | 7,0 | 8,9 | 11,7 | 13,3 | 16,4 |
| Total absorbed power | kW | 1,5 | 1,8 | 2,4 | 3,1 | 3,8 | 4,4 | 5,4 |
| EER | 2,86 | 2,79 | 2,88 | 2,84 | 3,06 | 3,00 | 3,01 | |
| SEPR HT | 5,02 | 5,16 | 5,11 | 5,10 | 5,43 | 5,12 | 5,00 | |
| Power supply | V/Ph/Hz | 400V 3 - phase | 400V 3 - phase | 400V 3 - phase | 400V 3 - phase | 400V 3 - phase | 400V 3 - phase | 400V 3 - phase |
| Circuits / compressors | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | |
| Sound power | dB(A) | 80,4 | 80,4 | 80,6 | 80,8 | 80,8 | 81,1 | 81,6 |
| Width | mm | 738 | 738 | 738 | 836 | 836 | 836 | 836 |
| Depth | mm | 752 | 752 | 752 | 836 | 836 | 1006 | 1006 |
| Height | mm | 1261 | 1261 | 1460 | 1460 | 1670 | 1670 | 1670 |
| Operating weight | kg | 275 | 275 | 300 | 340 | 405 | 455 | 465 |
| Storage tank volume | l | 80 | 80 | 105 | 115 | 130 | 160 | 160 |
| Evaporator water connections | Rp | 3/4 | 3/4 | 1 | 1 | 1 1/4 | 1 1/4 | 1 1/2 |
